Our achievements

DV Hydraulics has designed and built two new hydraulic installations for the feeding and discharge of materials in drying ovens. These installations replace the existing, outdated systems and were completed very quickly – only 3 weeks from order to delivery. Since all components are standardized, these installations are future-proof and guarantee hassle-free maintenance in the future.

The specifications of the installations are as follows:

Group 1 – Material feeding to the oven:

• Power: 3 kW

• Reservoir: 60 liters

• Valves: ISO 4401

• Equipped with pressure, return, and air filters

• Gear pump: 11 cc

Group 2 – Material discharge:

• Power: 2.2 kW

• Reservoir: 40 liters

• Valves: ISO 4401

• Equipped with pressure, return, and air filters

• Gear pump: 8 cc

  ---

Of course, these installations come with complete documentation and will soon be installed by our technicians.

Do you have a project that requires a reliable hydraulic partner? Contact us at +32 3 888 60 00 or info@dvhydraulics.be and discover how DV Hydraulics can support you.

DV Hydraulics designed, built and installed a new hydraulic power unit to restore reliability to an existing cutting shear.

This installation replaced the existing outdated HPU.

The new unit has the following specifications :

• Stainless steel reservoir of 1300 litres.

• Double electronically controlled axial piston pump : 180 cc + 28 cc

• Offline conditioning with 150 cc vane pump, oil - air cooler, heater and filtration.

• Including cabling & labelling.

• 2 custom-made nickel-plated manifolds : reduction of piping on plant by using ISO 7368 cartridge valves.

• New piping to the cylinders.

All this custom-made so that the installation fitted perfectly into the existing chassis.

Naturally, this installation was also provided with the necessary documentation and professionally installed by our technicians in collaboration with the customer.

Do you have your own project for which you are looking for a partner to support you?

Do not hesitate to contact us on +32 3 888 60 00 or info@dvhydraulics.be!

DV Hydraulics developed and built an advanced hydraulic test installation, designed for performing high-pressure tests up to 4000 bar.

This installation is equipped with proportional pressure control and combines precision, safety, and user-friendliness in one compact unit. The installation was fully tailored to the specific requirements of the customer and configured for reliable operation, even under prolonged load and extreme pressure levels.

Technical Specifications

• Proportionally adjustable pressure control between 0 and 4000 bar, for both increasing and decreasing pressure

• Short cycle time of approximately 1 second, depending on dead volume

  • At a volume of 500 cc, the compressibility of oil results in a compression of nearly 31% at 4000 bar (approximately 156 cc)

  • With a secondary flow rate of 0.3 liters/min, this corresponds to ±30 seconds filling time

• Installed electrical power of 4 kW, sufficient for stable operation of the installation

• Primary hydraulic circuit:

  • Pressure: 250 bar

  • Flow rate: 8 liters per minute

• Secondary flow rate with water: approximately 0.3 liters per minute when the desired test pressure is higher than the primary pressure

• Hydraulic tank with a capacity of 120 liters, equipped with:

  • Temperature protection

  • Level protection

• Air-cooled system with:

  • Circulation pump

  • Built-in filter

• Electrical control cabinet with extensive functions:

  • Start/stop operation

  • Monitoring of the installation

  • Emergency stop provision

  • Stabilized power supply

  • Selector switch for testing at 1000 or 4000 bar

• Pressure control module with control valve for precise and stable pressure regulation in the secondary circuit

• Pressure sensors for 1300 bar and 4000 bar

Construction & Test Area

• Steel chassis with the following dimensions:

  • Length: 2000 mm

  • Height: 2000 mm (working height: 900 mm)

  • Depth: 900 mm

• Fully enclosed with steel plates to optimally secure the high-pressure section

• Integrated drip tray under the work surface

• Entire construction painted in RAL 9010

• Lockable test compartment:

  • Width of 1000 mm

  • Closure via a steel door

  • Door equipped with an electrical contact for safety

• Stainless steel test block mounted on the work surface

Reliable Performance at Extreme Pressures

This high-quality test installation offers an accurate, safe, and efficient solution for applications requiring tests at extremely high pressures. Thanks to its modular design and flexible configuration, the system can be easily adapted to a wide range of test requirements. The combination of advanced technology and maximum safety features makes this installation ideal for critical test environments where reliability and control are essential.

Looking for a custom high-pressure test installation?

DV Hydraulics designs and builds hydraulic test installations according to your specifications – from 100 to 4000 bar and beyond.

Contact us for a non-binding discussion of your project: +32 3 888 60 00 or info@dvhydraulics.be

DV Hydraulics designed and built 2 custom hydraulic power units for new 125-ton cutting presses, equipped with a powerful press cylinder. This system was specifically designed to meet the customer's unique requirements, optimized for maximum safety and performance. The systems comply with the highest safety standards.

The specifications of the hydraulic power units are as follows:

• Press cylinder with a bore of 360 mm, designed for powerful and controlled cutting operations

• Custom manifold block mounted on the cylinder, with all necessary valves for optimal performance

• Electrical control cabinet ensuring precise position and force control of the cylinder, with both fast and slow movements

• Safety level PL e, including light curtains and safety guards to ensure operator safety

• Hydraulic piping executed in Belgium, delivered and installed at the customer’s location

• On-site commissioning and start-up carried out by our experienced technicians in Ireland

• CE certification to comply with all necessary European standards

These custom hydraulic power unitd provide a reliable and efficient solution for the cutting presses, with a high safety level and optimal performance. Thanks to its tailored configuration, the systems accurately meet the customer’s needs and optimizes the machine's operation.

The installations were delivered and installed as plug & play, ensuring rapid operation without prolonged production downtime. The combination of advanced technology and safety makes these systems ideal for industrial applications that require precision and reliability.

Do you have a project requiring a custom hydraulic power unit? Contact us at +32 3 888 60 00 or info@dvhydraulics.be – we would be happy to work with you on a solution tailored to your specific needs!

DV Hydraulics designed and built a fully custom hydraulic system based on water instead of oil, specifically developed for a unique underwater environment in the entertainment sector.

The installation is part of a spectacular show element in the largest water show in the world, where all hydraulic actuators – including cylinders and motors – operate permanently under water at a depth of 7 meters in a swimming pool.

Although the HPU itself is not located underwater, all movements – including proportional control – are controlled from beneath the surface by a diver.

Operation takes place via a dedicated control panel with levers on the boat.

This called for a design in fully stainless steel, combined with pure water as hydraulic medium.

This makes the system completely leak-safe, even in sensitive environments like swimming pools where water quality and reliability are critical.

The installation has an installed power of 180 kW, proportionally controlled via frequency drives, and is built with redundancy to ensure maximum operational reliability.

Control is handled by a powerful Siemens S7-1517 PLC, connected to three HMI panels for safe, precise, and intuitive operation – even during live performances.

On the mechanical side, only high-quality, corrosion-resistant components were used:

Three stainless steel triple-action cylinders operate the masts, powered by a custom-designed RVS manifold block.

The system also includes four nickel-plated caterpillar drives with integrated stainless steel hydraulic motors, and two automatic hose reels, also driven by RVS hydraulic motors.

Key technical specifications:

• All actuators (cylinders, motors) operate permanently underwater (7 meters deep).

• Proportional movements and control are performed underwater.

• Full stainless steel construction for optimal corrosion resistance.

• Pure water as hydraulic medium – safe for use in swimming pools.

• 180 kW installed power, proportionally controlled via frequency drives powering CAT pumps.

• Redundant system design for maximum reliability.

• Siemens S7-1517 PLC with three HMI control panels.

• Three stainless steel triple-action cylinders with dedicated RVS manifold block for the actuation of the masts.

• Four nickel-plated caterpillar drives with RVS hydraulic motors.

• Two automatic hose reels driven by RVS hydraulic motors.

• Boat-based control panel for central operation.

• Delivered as a complete turnkey project.

This water-based hydraulic installation combines precision, durability, and safety in a challenging underwater environment.

It is designed for applications where absolute reliability, corrosion resistance, and environmental safety are essential.

Do you have a challenging project involving complex motion control?

Contact us at +32 3 888 60 00 or info@dvhydraulics.be – we’ll gladly help you develop a tailor-made solution.

DV Hydraulics developed and delivered a custom-designed hydraulic test bench for testing hydraulic valves for a customer active in the automotive sector.

This advanced installation is designed to combine high precision with flexibility and robustness, suitable for testing hydraulic valves under a wide range of conditions.

The test bench is equipped with two separate test circuits. These offer extensive control options for both pressure and flow.

Thanks to the use of servo pumps, extremely precise adjustments are possible, tailored to the specific requirements of the customer. Moreover, the servo pumps result in significantly lower energy consumption compared to traditional hydraulic systems, making the test bench not only more efficient but also more sustainable.

The installation was delivered as a turnkey project, fully installed and commissioned at the customer's site.

Key specifications of the test bench:

• Two test circuits with servo pumps, for individual control of flow and pressure

• Control range from 0 – 105 litres per minute and 0 – 100 bar, with an accuracy of 0.1% F.S.

• Oil temperature control from -20°C to +140°C, suitable for extensive test scenarios

• Viscosity range between 1000 and 3 cSt, for various oil types and conditions

• Fine filtration down to 2 µm, for maximum protection of test components and accurate measurements

• Accurate pressure and flow measurements for each separate circuit

• Siemens S7 PLC control with user-friendly interface, data logging, and integrated safety circuit

• Delivered as a full turnkey installation, ready for immediate use by the customer

This hydraulic test bench provides a reliable and highly precise solution for testing hydraulic components in an R&D or quality control environment.

Thanks to the advanced temperature regulation and the ability to test with different viscosities, this installation is particularly suitable for applications requiring extreme conditions and high accuracy.

The combination of technical innovation, safety, and ease of use makes this test bench a versatile tool for demanding test applications.

Looking for a custom hydraulic test bench? Contact us via +32 3 888 60 00 or info@dvhydraulics.be – we’d be happy to help you find a solution tailored to your specific needs!

DV Hydraulics designed, built, and delivered a complete 140-ton hydraulic press, fully tailored to the specific needs of the customer. This industrial press solution combines power, precision, energy efficiency, and safety in one advanced system.

The press is equipped with a dual hydraulic cylinder, an ATOS Group servo pump system, and multiple integrated safety components — a future-proof solution for manufacturing companies focused on performance and sustainability.

Custom-Built Hydraulic Press with Dual Cylinder Configuration

DV Hydraulics is known for its custom-designed hydraulic systems. This press was also entirely developed and built in-house – from concept to final product.

The dual-cylinder setup enables a wide and precise force range:

• Main cylinder (280 mm bore): force control between 15 and 140 tons.

• Secondary cylinder (100/70 mm, 400 mm stroke): fine force regulation between 1.5 and 15 tons.

A Robust and Rigid Structure

The press is constructed with a pre-tensioned column frame:

• Fully nickel-plated to prevent corrosion.

• Equipped with T-slots for tooling installation.

• The press block is engineered for a maximum deflection of 0.2 mm over 1100 mm.

This design enables both heavy-duty operations and high-precision tasks to be performed with reliability and control – ideal for cutting, forming, or assembly processes.

Whisper-Quiet Servo Pump: Energy-Efficient and Low Maintenance.

Even though DV Hydraulics has extensive experience in building custom servo pump systems, this project used the standardized SSP servo pump unit from ATOS Group.

This smart choice allowed us to offer a cost-effective and energy-efficient hydraulic solution without compromising on performance.

Key benefits of the ATOS SSP servo pump system:

• Up to 82% lower energy consumption than traditional hydraulic systems

• Whisper-quiet operation – improved ergonomics and reduced noise pollution

• No heat generation – no external cooling required

• Compact and low-maintenance design

• Full electronic control of force and speed

These features make it the ideal choice for companies investing in energy-efficient production systems.

Maximum Safety Through Integrated Safety Components

Safety was a top priority throughout the development of this project. The hydraulic press installation is equipped with:

• A light curtain for hand detection.

• Multiple safety valves, fully integrated into the hydraulic safety circuit.

• A design that complies with the latest Machinery Directive and safety standards.

Thanks to this integrated approach, the result is an extremely safe hydraulic press that allows operators to work efficiently and with confidence.

Plug & Play Installation with Full On-Site Support

The entire hydraulic system was prepared in Belgium and delivered to the customer’s site as a plug & play solution. Our experienced technicians handled the on-site installation and commissioning, enabling the client to resume production quickly, with minimal downtime.

Looking for a Safe, Energy-Efficient, and Custom Hydraulic Press?

DV Hydraulics delivers durable and high-performance hydraulic press solutions, tailored to your production needs. Whether you're looking for a powerful cutting press, servo-controlled cylinders, or quiet hydraulic systems – we’re here to help.

Contact us at +32 3 888 60 00 or email info@dvhydraulics.be. We’ll work with you to develop the perfect safe and energy-efficient hydraulic installation for your specific application.

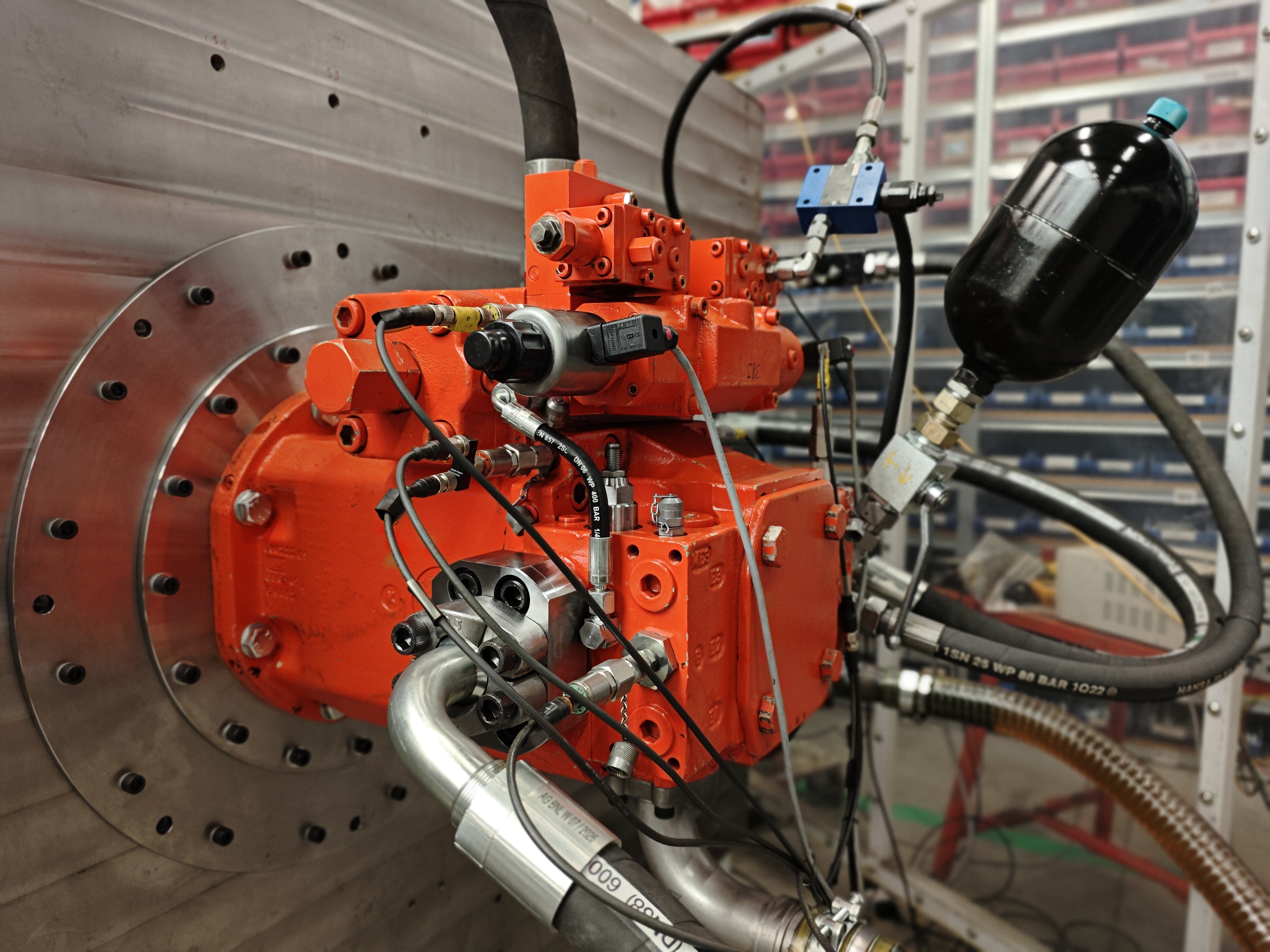

DV Hydraulics developed and delivered a custom-built digital hydraulic pump in a closed circuit 250cc configuration, designed specifically for an application where no standard market solution was available.

This pump was engineered for exceptional precision, fast response, and fully digital control, tailored to the requirements of a complex regulation system where conventional pumps fell short.

The pump configuration includes the following specifications:

• Closed circuit 250cc pump

• Nominal operating pressure: 350 Bar – Maximum speed: 2200 rpm

• Built-in digital absolute encoder for precise swash plate angle measurement

  • Accuracy: 100 arcsec – Resolution: 0.0007°

• Fully integrated ATOS DLHZO servo-proportional valve with built-in electronics and axis control to drive the pump

• Direct Profinet communication between encoder and valve – no intermediate modules required

• Pressure sensors with 0.1% FS accuracy and refresh rate >1 kHz

Thanks to the direct encoder coupling mounted on the pump's drive shaft, all mechanical tolerances are negligible, resulting in highly stable and precise control.

The pump offers the following advantages:

• Fully digitally controlled via Profinet – seamless PLC integration

• Faster step response – up to 50% quicker than standard market pumps

• ±0.1% control accuracy – for extremely precise pressure, position or speed regulation

• Plug & play as a ready-to-use unit – no complex tuning required

• Also available as a retrofit solution for existing systems

• Multiple units have already been successfully installed and operating flawlessly for years

This pump setup is ideal for industrial applications requiring high-precision in pressure, position, or speed control.

Think of industrial automation, test benches, or high-accuracy actuators where standard hydraulic pumps fall short.

Do you have an application where standard solutions don’t meet the mark? Contact our team at +32 3 888 60 00 or info@dvhydraulics.be – we create tailor-made solutions that truly work.

DV Hydraulics designed and built a compact, high-performance custom hydraulic installation to operate an 800-ton industrial shear.

The system features a Parker PV Plus PV360 pump, equipped with electronic control of pressure, flow and power, ensuring full control and top-tier performance. This solution is engineered for heavy-duty industrial applications, where power, precision, and reliability are key.

High-performance specifications:

• Parker PV Plus PV360 pump with electronic regulation of pressure, flow, and power – delivers up to 612 l/min with a maximum pressure of 350 bar

• Custom-built manifold block designed for compact and efficient hydraulic control

• Compact design allows for fast, simple integration into existing machine setups

• Fully integrated control cabinet, enabling safe and precise operation

• 1,500-liter reservoir, suitable for heavy and continuous operation

• Offline cooling and filtration extends oil life and reduces maintenance needs

• Real-time monitoring of pressures, oil temperature, levels, and filter contamination – simplifies diagnostics and servicing

• On-site commissioning and setup by our experienced technicians

Smart control, maximum efficiency

The combination of the electronically controlled PV Plus pump and custom manifold block gives operators full command over speed, pressure, and energy consumption. This results in highly efficient and energy-conscious cutting performance.

Plug & play system built for industrial demands

This system was delivered as a plug & play solution, enabling quick integration into the production line without long downtimes. Thanks to its compact footprint, the unit was seamlessly installed in the existing setup, allowing the conversion to take place during a scheduled two-week summer shutdown.

Looking for a custom hydraulic system for heavy-duty applications?

DV Hydraulics provides powerful, reliable, and intelligent hydraulic solutions for industrial shears, presses and other installations.

Contact us today: +32 3 888 60 00 info@dvhydraulics.be

We’ll gladly help you design a hydraulic system tailored to your specific production needs.

DV Hydraulics developed a complete custom hydraulic installation for a client aiming to modernize their existing production capacity. The project involved building a retrofit installation for a 4000-ton press, fully integrated into a shipping container with advanced fire safety features.

After the first installation proved the press functioned perfectly, the other six followed quickly.

Thanks to this well-considered retrofit solution, the client was able to modernize their presses rapidly without prolonged downtime. Each installation was delivered turnkey as a Plug & Play unit and seamlessly integrated with the existing machine park.

Technical specifications of the custom hydraulic installation

• Containerized setup for compact and mobile integration without major building modifications

• Motion control of 10 axes with precision and variable speed via proportional valves

• Valve cabinets located next to the press, easily accessible and protected against contamination

• Fire detection by fusible wire, linked to automatically closing air inlets

• Reduction in fire insurance premiums thanks to integrated safety measures

• Uniform design following a successful proof of concept on one press

• Complete engineering, construction, and testing done in-house at DV Hydraulics

• CE-compliant documentation provided upon delivery

Retrofit for presses with focus on safety and performance

These custom hydraulic installations provide an efficient and future-proof solution for press retrofit. The combination of modular container construction, and fire safety ensures high reliability with minimal impact on the existing production environment.

The client benefits from:

• Fast installation without building modifications

• Single point of contact for engineering, realization, and commissioning

• Lower insurance costs thanks to smart fire protection

• Simplified maintenance through standardized design

This project is a strong example of how custom hydraulic solutions contribute to the modernization of industrial installations.

Looking for a retrofit solution or custom hydraulic installation?

DV Hydraulics delivers durable, safe, and precise custom hydraulic systems, perfectly tailored to your production process.

Contact us at +32 3 888 60 00 or info@dvhydraulics.be – we are happy to assist you with a solution perfectly suited to your retrofit project or industrial application.

DV Hydraulics designed and delivered a custom hydraulic installation for powering a port crane. The system was tailored entirely to the client's technical and operational requirements, with key goals: maximum precision, smooth movement, and total peace of mind throughout the project.

From engineering to commissioning, DV Hydraulics took full responsibility — allowing the client to focus entirely on achieving the required unloading capacity without technical concerns or delays.

Installed in the crane’s machine room, the system was built to perform reliably in extreme temperature conditions. Integrated heating and cooling ensure smooth operation in both hot and cold environments.

The hydraulic control system provides exceptionally smooth and precise motion — essential for demanding port applications.

Specifications of the custom hydraulic installation:

• 51.5 kW installed power via power-controlled variable piston pumps

• Redundant pump configuration: one pump takes over in case of failure

• Controls two luffing cylinders (137 tons lifting capacity each) and two kicking cylinders (42 tons pulling, 25 tons pushing)

• Proportionally controlled load-holding valves ensure accurate and fluid movement

• Easy to check proportional valve stands located close to the cylinders for fast and stable response

• Safety valves mounted directly on the cylinders for maximum safety.

• Easy maintenance: accessible filters above the drip tray and lockable cylinder outlets

• Digital monitoring of pressure, oil temperature, fluid level and more for quick diagnostics

• Data logging system included for remote support and performance analysis

In addition to the custom hydraulic power unit , DV Hydraulics provided the full control setup of the unit, custom pipework, and on-site commissioning in Eastern Europe.

Thanks to remote support and detailed technical documentation, the client can operate the system confidently — without worrying about complexity or faults.

From concept to commissioning, DV Hydraulics took full ownership of the project — delivering a robust, efficient, and future-proof hydraulic installation tailored to the exact needs of the crane and port operations.

Looking for a trusted partner for a custom hydraulic drive system or hydraulic installation? Contact us via +32 3 888 60 00 or info@dvhydraulics.be – we’d be happy to assist!
